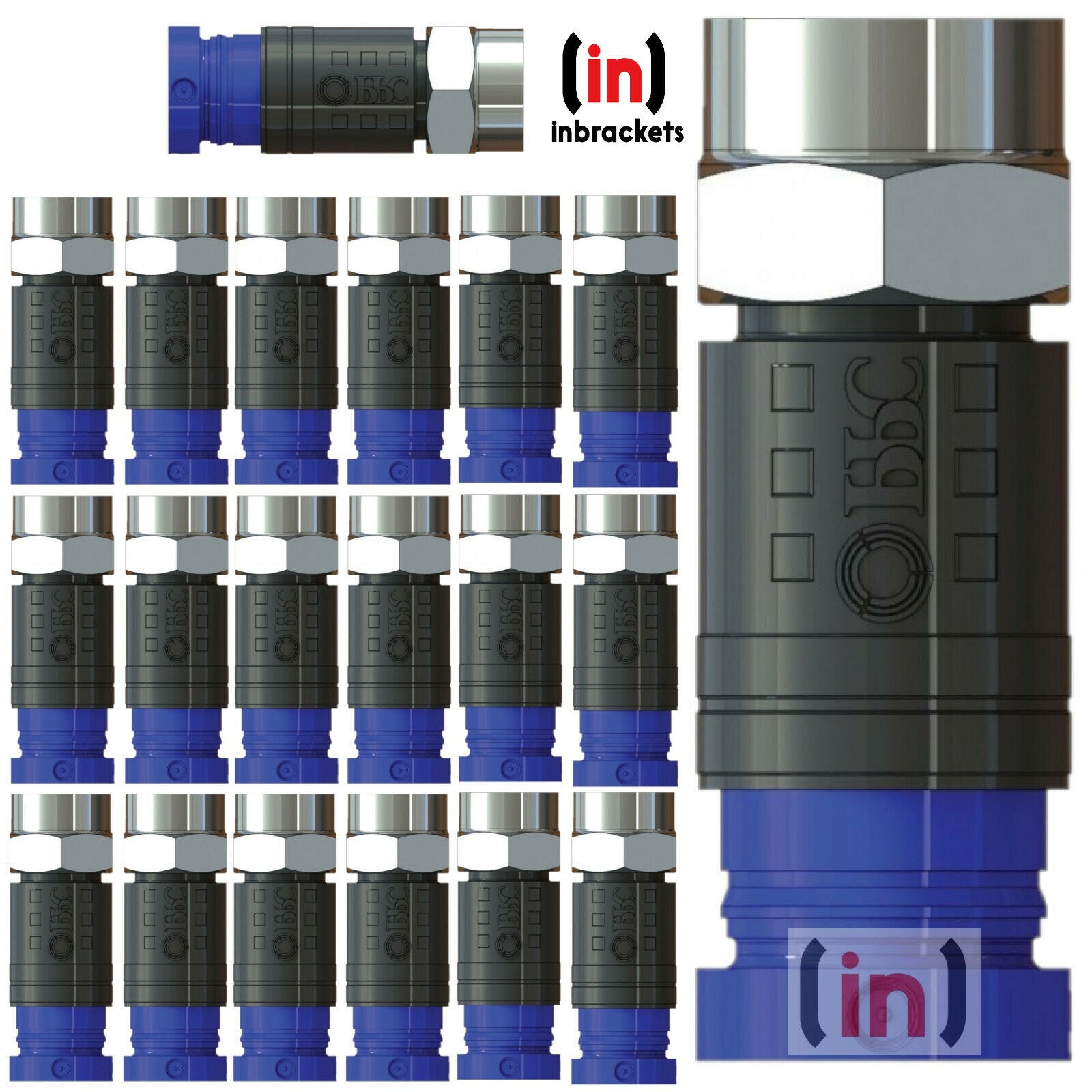

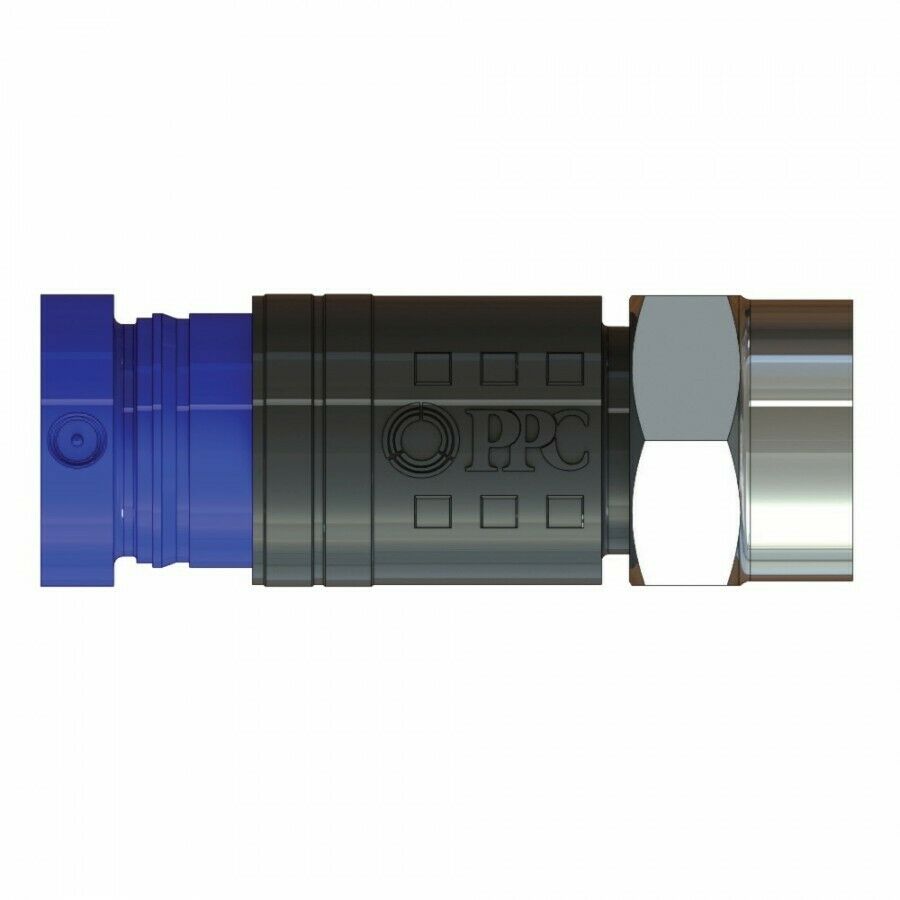

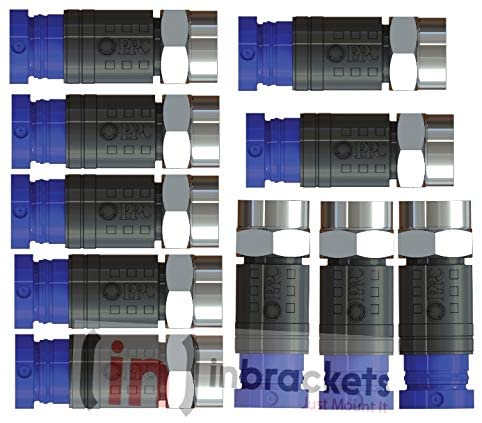

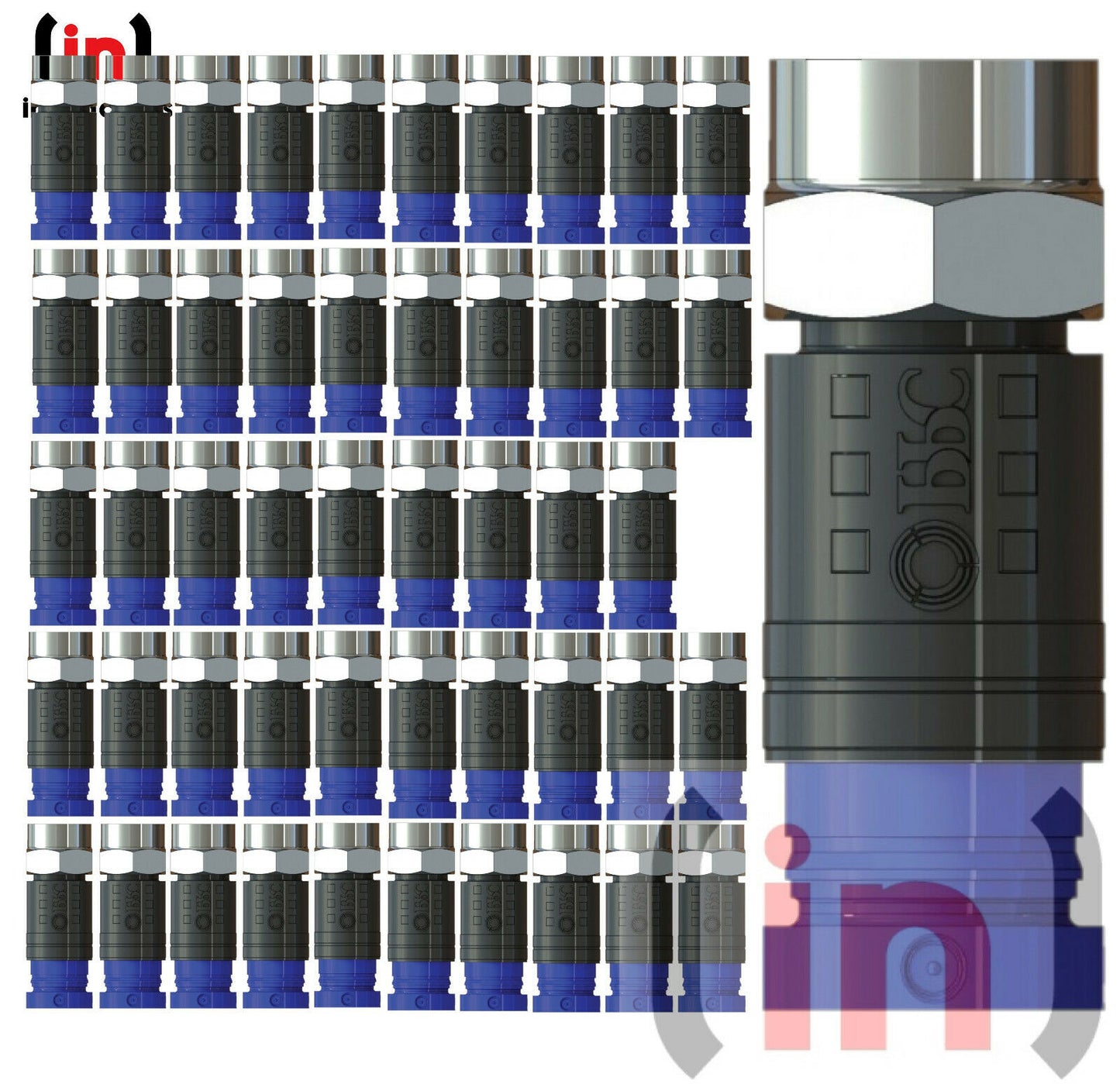

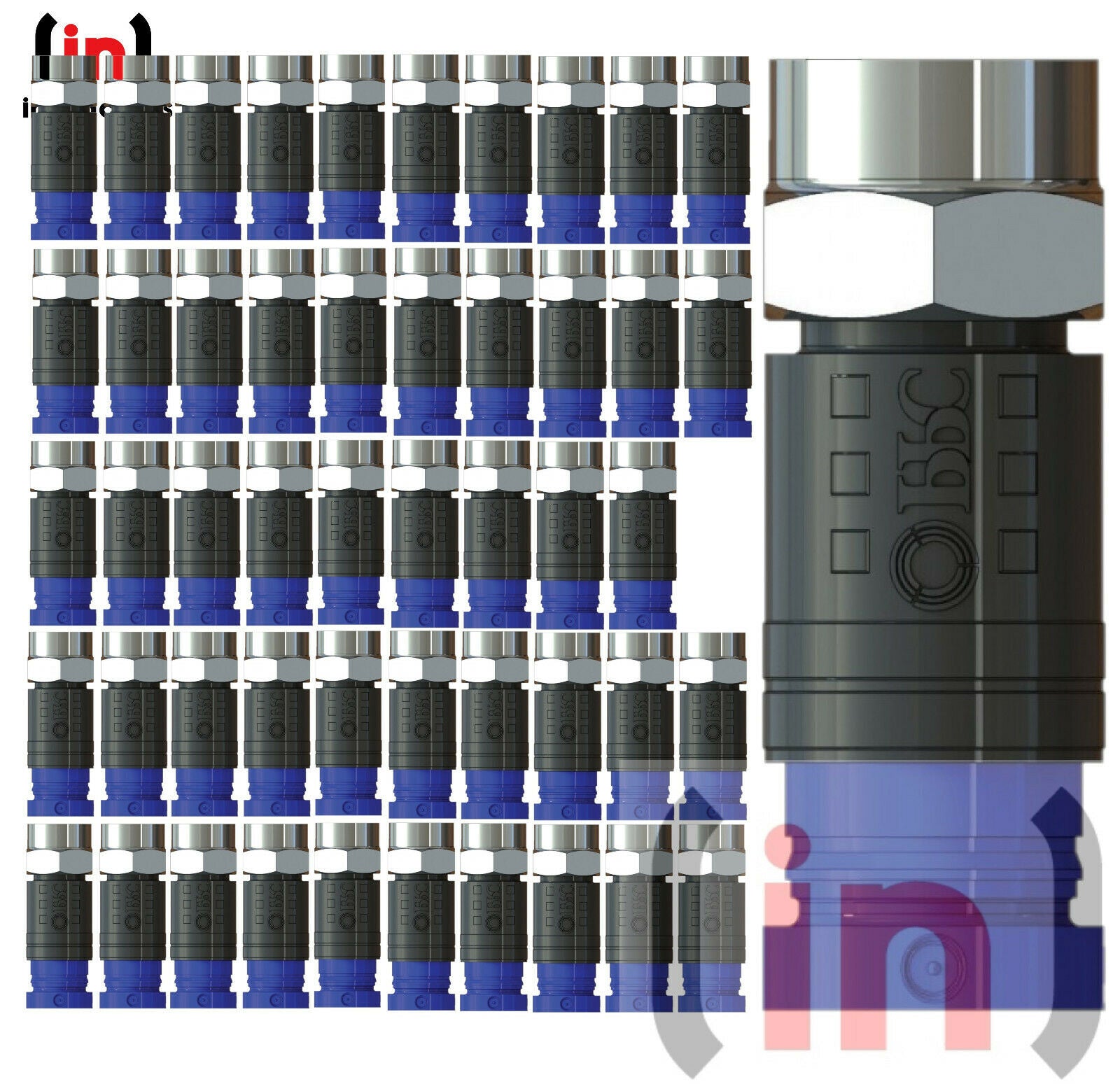

CMX100 Compression F Connectors for CT100 WF100 rg6 AERIAL AND SATELLITE Cable -Trade Industry Standard
The Cmx Satellite series compression F type connector is designed to excel on TV & Satellite cables.

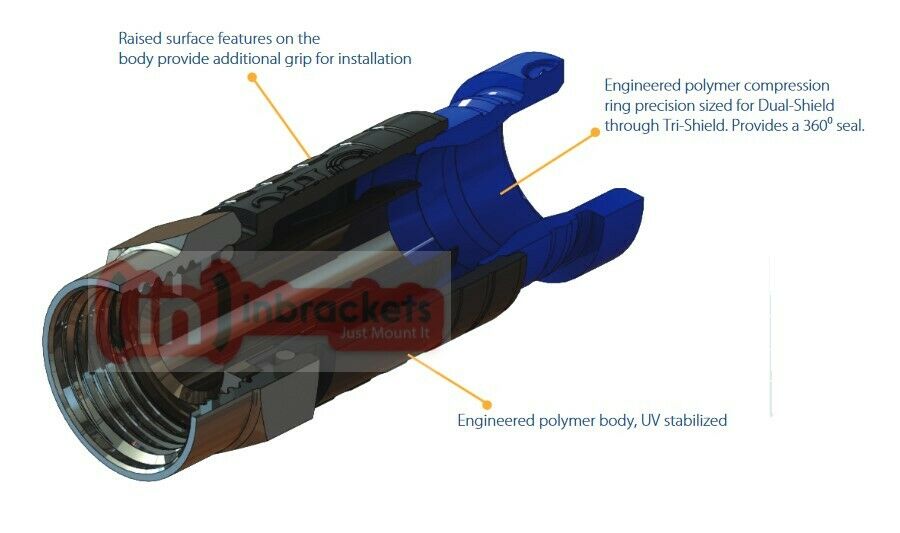

The engineered polymer body and compression ring provide simple installation while maintaining high performance both mechanically and electrically.
The bLUE bodied connector works with the Industry standard CT100 OR WF100, RG6
These connectors are the exact same ones as used by Sky Engineers, so you know you are getting a proven industry-standard connector.
Please note.You will require a suitable compression tool for these connectors. Do not confuse these for the cheap imitations.
These are the Leading satellite and aerial industry standard compression fittings for CT100 WF100 RG6 AERIAL AND SATELLITE CABLE.
-
Bandwidth 0 MHz to 3 GHz
-
Impedance75 Ohms (nominal)
-
Return LossMinimum -25dB to 3 GHz
-
Insertion LossLess .18 dB
-
Operating Voltage90 V (at 60 Hz continuous AC)
-
Operating Temperature-40o F to + 140o F (-40o C to 60o C)
